How Reducers Affect Pressure Loss in Industrial Exhaust Ductwork

A Reducer Is an Area Change, Not Just a Size Change

A reducer is often treated as a simple connection between two duct diameters. Aerodynamically, it is an area change that alters velocity, static pressure, and the local loss introduced by the fitting.

That distinction matters in industrial exhaust systems because the reducer may sit inside the controlling pressure path. A change that looks minor on a fabrication drawing can affect fan duty, branch balance, measurement conditions, and the pressure available at a hood or process connection.

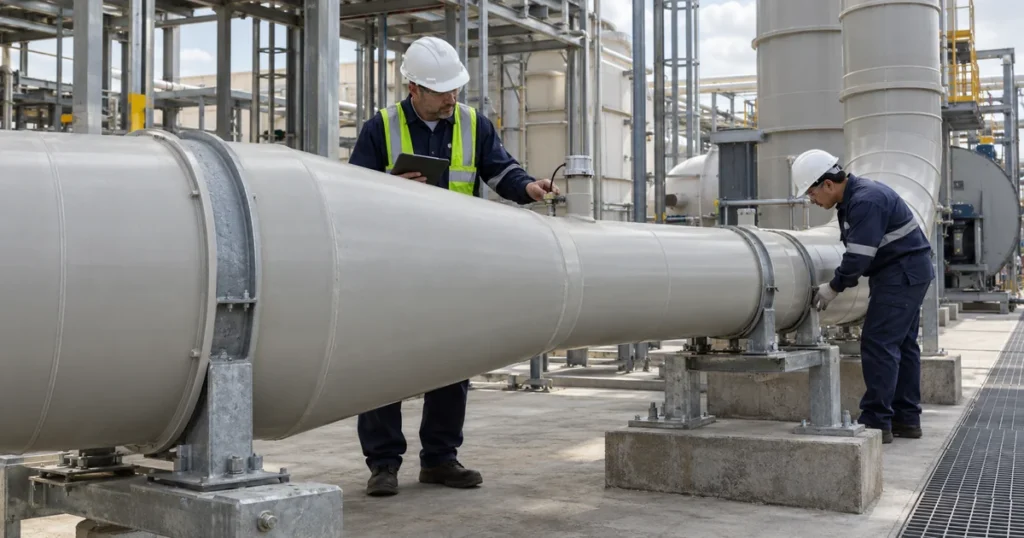

PDI manufactures fabricated PVC and CPVC reducers for industrial ventilation systems. The product page defines the available sizes and connection configurations. The engineering question is different: what does the selected size change do to the airflow system?

Start With the Direction of Airflow

The physical fitting may be called a reducer, but its aerodynamic behavior depends on the direction of airflow.

When air moves from the larger duct into the smaller duct, the fitting is a converging transition. Velocity increases because the same volumetric flow has to pass through less area.

When airflow is reversed and moves from the smaller duct into the larger duct, the same physical geometry acts as a diverging transition. Velocity decreases, and part of the velocity pressure can be converted into static pressure.

ASHRAE distinguishes these conditions clearly. In a converging transition, velocity pressure increases while total pressure and static pressure decrease. In a diverging transition, velocity pressure decreases, total pressure still decreases because real fittings have loss, and static pressure may increase through static regain.

That is why product naming alone is not enough to calculate performance. The engineer must know the actual airflow direction.

Static Pressure Change Is Not the Same as Fitting Loss

This is one of the most important distinctions in reducer calculations.

A converging transition accelerates the air. Some of the static pressure change occurs because energy is being shifted into velocity pressure. That is different from the irreversible total pressure loss caused by turbulence and viscous effects in the fitting.

ASHRAE represents fitting loss using a dimensionless local loss coefficient:

Δpt = C × pv

where Δpt is the total pressure loss through the fitting, C is the local loss coefficient, and pv is the velocity pressure at the reference section used for that coefficient.

The reference section matters. In unequal area fittings, the coefficient may be referenced to one side of the transition rather than the other. Using the correct coefficient with the wrong velocity pressure can produce an incorrect result even when the arithmetic is perfect.

The calculation should therefore use the exact fitting geometry and the reference convention associated with the selected loss coefficient.

Area Ratio Changes Velocity Quickly

For a fixed volumetric airflow in a low pressure duct system, average velocity is inversely proportional to cross sectional area.

Consider a round exhaust duct carrying 3,000 CFM. The table below shows what happens as the duct diameter decreases.

The 16 inch section carries the same 3,000 CFM as the 20 inch section, but its velocity is approximately 2,149 fpm instead of approximately 1,375 fpm.

At the same air density, velocity pressure changes with the square of velocity. That means the velocity pressure in the 16 inch section is approximately 2.44 times the velocity pressure in the 20 inch section.

That does not mean the reducer itself has a loss equal to that velocity pressure increase. The actual fitting loss still requires the appropriate loss coefficient. The example simply shows why a large area reduction can materially change the pressure environment around the fitting.

Transition Geometry Controls More Than Length

Two reducers with the same inlet and outlet diameters do not necessarily have the same pressure loss.

The transition shape influences how smoothly the velocity field changes from one section to the other. A compact transition can create a more abrupt change in the flow field. A longer transition may provide a more gradual area change, but the correct geometry should still be evaluated using actual fitting data rather than a universal rule.

ASHRAE places round transitions in its fitting loss framework and provides fitting specific coefficient data in the Duct Fitting Database. Those coefficients are the appropriate basis for engineering calculations where the geometry matches the selected fitting.

Do not assume that one transition angle produces the same result for every area ratio, flow condition, or installation.

The same caution applies to fan inlet transition guidance. AMCA publishes transition limits and system effect guidance for fan connections, but those fan inlet rules should not be applied automatically as universal geometry requirements for every reducer in a duct network.

A Reducer Near a Fan Can Affect More Than Fitting Loss

A reducer located close to a fan can influence the velocity profile entering the fan.

AMCA describes system effect as the performance penalty created by nonuniform or swirling airflow at a fan inlet or outlet. It identifies duct transitions and field changes near fans as common contributors to these adverse conditions.

This is different from the normal fitting loss coefficient.

A reducer can have a calculable local loss and still create a fan inlet condition that causes additional installed performance loss if the transition, elbow, damper, or other fitting is too close to the fan or produces a distorted velocity profile.

That is why the pressure model and the physical layout should be reviewed together.

If the reducer is located near a fan inlet, ask:

• Does the transition deliver reasonably uniform airflow to the fan?
• Is there an elbow or damper immediately upstream?
• Does the transition match the fan inlet geometry?
• Is enough straight duct available where the fan installation requires it?
• Has system effect been included in the fan selection?

The fan curve does not correct a poor inlet condition by itself.

Reducers Interact With Nearby Elbows, Branches, and Dampers

Fitting losses are often calculated one fitting at a time, but installed airflow does not reset to an ideal profile after every component.

A reducer located immediately after an elbow may receive a skewed or rotating velocity profile. A damper just upstream can introduce another disturbance. A branch connection can change both flow quantity and profile before the transition.

Where fittings are closely spaced, flow leaving one component may not recover to the condition assumed for the next isolated fitting. Near a fan, those interactions can also contribute to system effect beyond the local fitting loss.

PDI’s article on elbow pressure loss addresses the same principle from the elbow side. The reducer should be evaluated as part of that same fitting sequence.

Reducer Location Can Affect Branch Balance

In a branched exhaust system, changing duct area changes the resistance of that flow path.

If a reducer raises velocity and fitting loss in one branch, the pressure required to maintain the same target airflow in that branch increases relative to a lower resistance configuration. In a shared fan system, the resulting airflow distribution can shift unless the fan duty, gate position, damper setting, or network resistance is adjusted accordingly.

This is especially important where several branches share one fan.

A reducer added during a field change should therefore not be treated as a neutral dimensional fix. It changes the pressure model.

The design review should ask whether the reducer is located on the controlling path, whether the new velocity remains appropriate for the exhaust stream, and whether the modified resistance changes the balance between branches. PDI’s PVC Duct Sizing resource explains how branch interaction and controlling path resistance influence fan duty across the complete system.

Do Not Size a Reducer From Diameter Alone

A reducer specification should include enough information to define both fabrication and aerodynamic intent.

The important inputs include:

• Upstream and downstream duct sizes.
• Direction of airflow.
• Required airflow through the transition.
• Available transition length.
• Actual fitting geometry.
• Normal and maximum credible operating modes.
• Nearby elbows, branches, gates, dampers, or equipment.
• Fan inlet or outlet proximity.
• Process temperature and gas density where relevant.
• Material and service chemistry.
• Support and equipment interface conditions.

The diameter pair tells the fabricator what sizes have to connect. It does not by itself establish the pressure loss.

PVC and CPVC Material Choice Does Not Set the Aerodynamic Loss

PVC or CPVC material alone does not define the fitting loss coefficient. For geometrically equivalent transitions operating under comparable flow conditions, the aerodynamic calculation is governed primarily by the transition geometry, airflow, density, and the reference convention used for the fitting data.

Material still matters to fabrication and service suitability, but it should not be used as a substitute for fitting specific aerodynamic data.

Material still matters for the system because temperature, chemistry, structural stiffness, fabrication method, and support requirements can affect which reducer can be used and how it is installed.

PDI’s Reducers page provides PVC and CPVC product configurations. Material selection should be handled separately from the aerodynamic calculation.

Large or Custom Reducers Need Project Specific Review

A standard reducer can often be represented using published fitting data when its geometry and flow condition reasonably match the database definition.

Large custom transitions may require more scrutiny.

The area ratio can be substantial, the transition length may be limited by equipment spacing, and the reducer may also carry flange weight or connect directly to a fan, scrubber, hood, or process tool.

For custom fabricated duct, the engineer should provide the fabricator with the required diameters, connection geometry, available length, operating pressure or vacuum, temperature, chemistry, and nearby equipment constraints.

The final pressure model should use a loss coefficient or engineering basis that matches the actual transition as closely as practical.

Commissioning Should Verify the System Around the Reducer

The reducer is part of the installed pressure path, so commissioning should confirm that the system behaves as the design assumed.

Where the reducer affects a critical branch or fan connection, record the operating mode, control positions, fan operating condition, and airflow or static pressure at the approved measurement locations.

Do not try to prove the reducer loss by taking one pressure reading immediately beside a disturbed fitting unless the approved test method supports that approach.

The practical commissioning question is whether the complete installed system delivers the required airflow at the expected fan and pressure condition.

What Engineers Should Check Before Releasing the Reducer

Before finalizing a reducer or transition, verify:

• The actual airflow direction.
• The upstream and downstream diameters.
• The design airflow through each operating mode.
• The velocity on both sides of the transition.
• The area ratio.
• The selected fitting loss coefficient and its reference section.
• The available transition length and geometry.
• The effect of adjacent fittings.
• The distance from the fan inlet or outlet where relevant.
• The impact on the controlling pressure path.
• The effect on branch balance.
• The material, temperature, and chemistry.
• The support and equipment connection arrangement.
• The commissioning measurement strategy.

This is the difference between specifying a reducer as a piece of ductwork and specifying it as part of an exhaust system.

Reducer Pressure Loss Belongs in the System Model

A reducer changes more than duct diameter.

It changes velocity, redistributes static and velocity pressure, adds a local total pressure loss, and can influence the flow profile seen by downstream components. Near a fan, the transition can also contribute to system effect.

The correct engineering approach is to model the actual transition using the appropriate fitting data, include it in the controlling pressure path, and then check how the resulting system performs across its required operating states.

For PDI projects, the Reducers product page should remain the commercial destination for standard PVC and CPVC reducer configurations. This resource provides the engineering context for deciding how that fitting affects the complete exhaust system.

Need Help With a PVC or CPVC Reducer Configuration?

Send PDI the upstream and downstream duct sizes, airflow, available transition length, process chemistry, temperature, pressure or vacuum conditions, nearby fittings, equipment connection details, and installation constraints through the Request Information form.
