ELBOWS

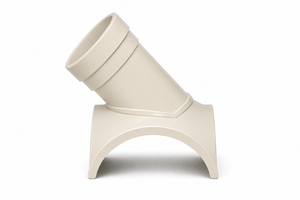

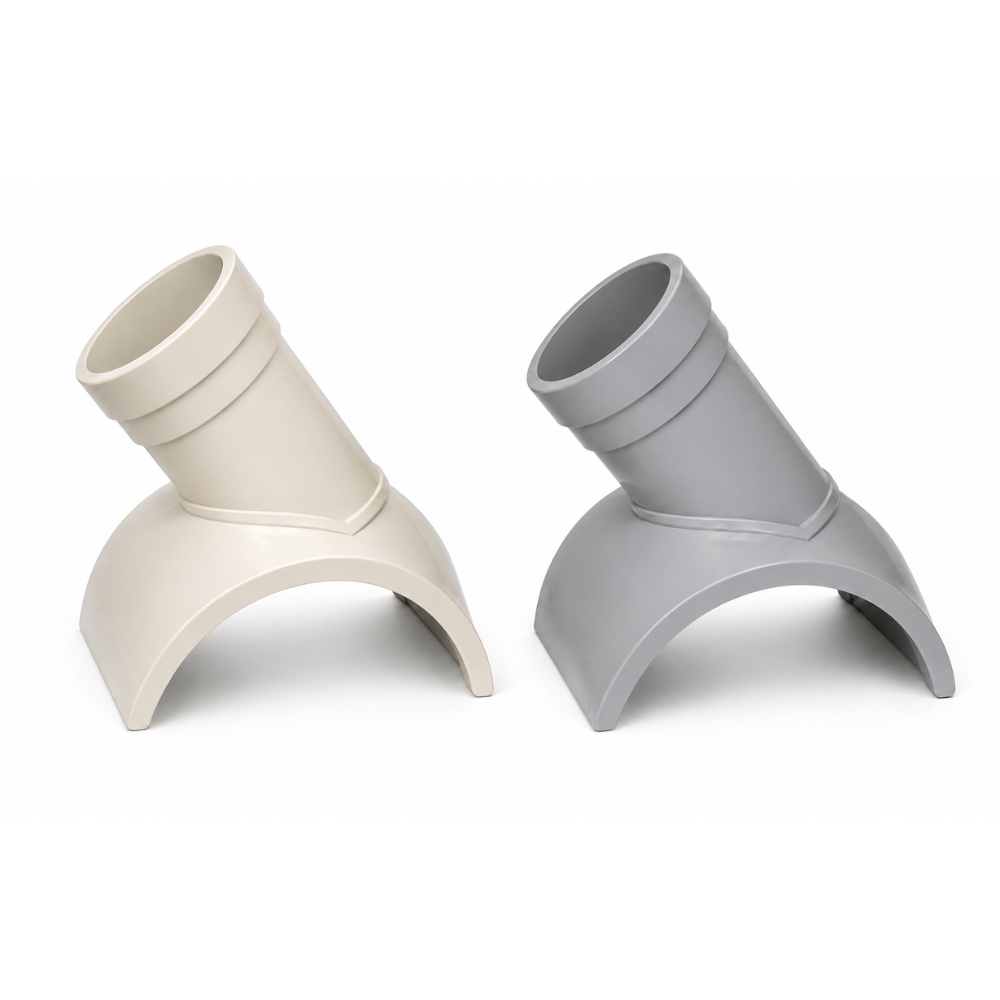

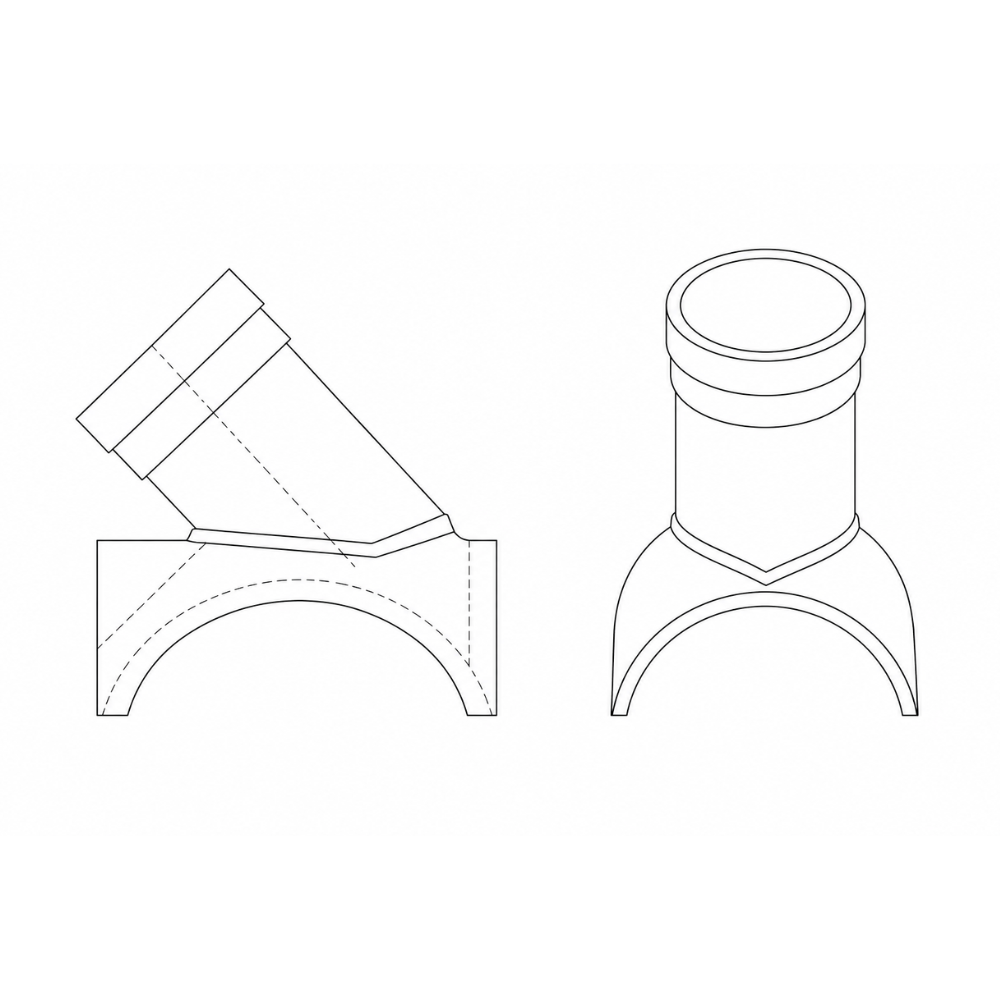

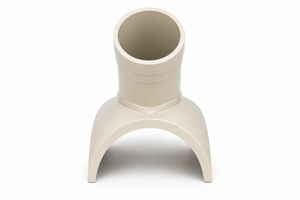

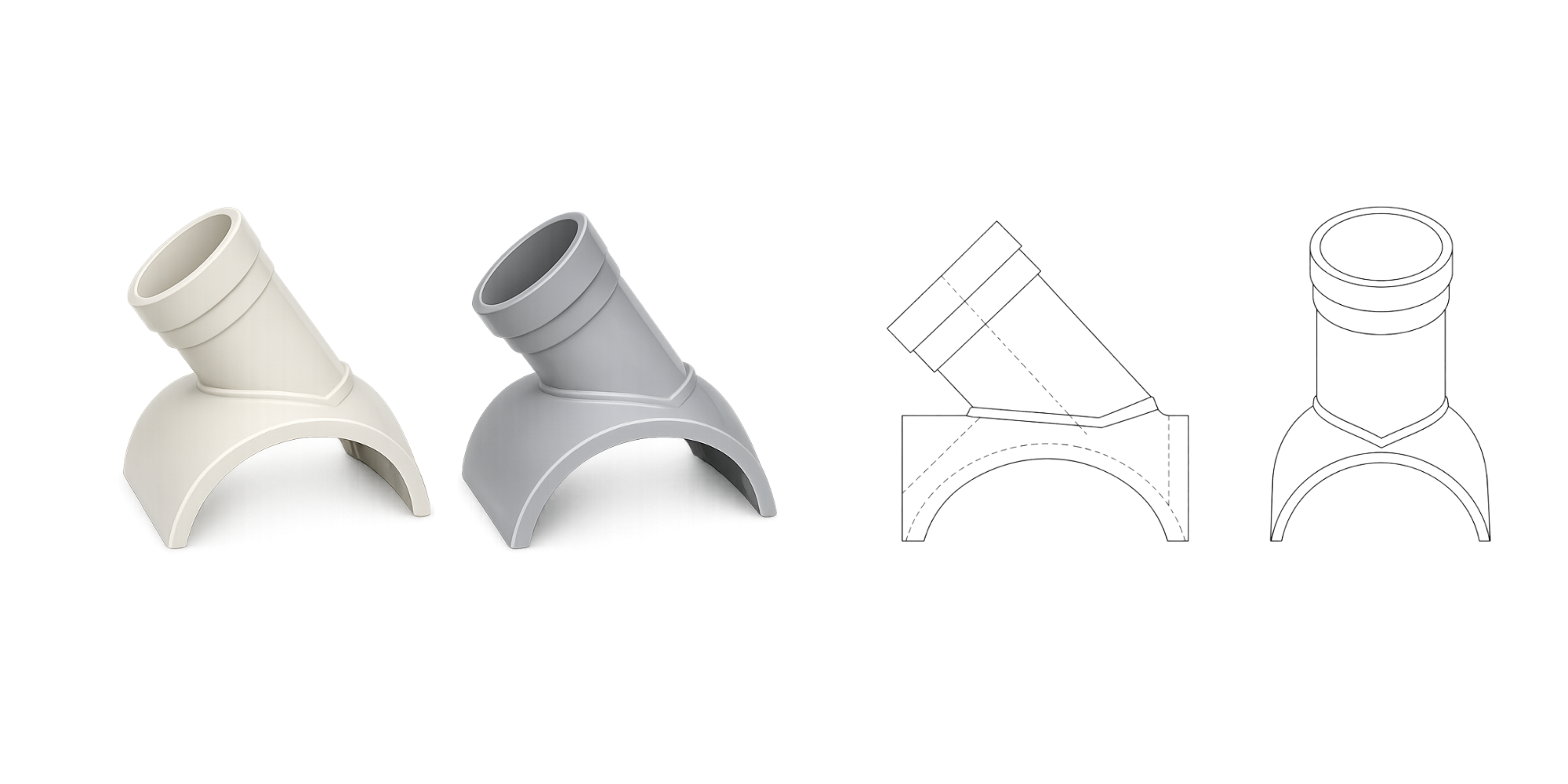

45° Wye Saddle

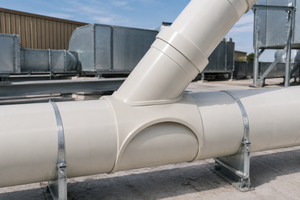

Fabricated 45° wye saddle fittings for creating branch
connections in industrial duct systems. Available in
PVC and CPVC for superior corrosion resistance,
efficient airflow, and long-term performance.

Fabricated 45° wye saddle fittings for creating branch connections in industrial duct systems. Available in PVC and CPVC for superior corrosion resistance, efficient airflow, and long-term performance.

Corrosion
Resistant

Chemical
Resistant

Lightweight & Strong

Lightweight &
Strong

Low
Maintenance

Specifications
Select Material & Size

Choose your material to view available models, dimensions, and end configurations.

PVC

Polyvinyl Chloride

CPVC

Chlorinated Polyvinyl Chloride

  • PVC supports corrosion-resistant industrial ventilation applications with strong chemical durability and low maintenance.

PVC 45° WYE SADDLE

Model NumberNominal SizeABEnd TypePrice (USD)
SA45-PVC-6-66 ON 66.625 + 1/166.625 + 1/16Socket$
SA45-PVC-6-76 ON 76.625 + 1/167.375 + 1/16Socket$
SA45-PVC-6-86 ON 86.625 + 1/168.625 + 1/16Socket$
SA45-PVC-6-96 ON 96.625 + 1/169.375 + 1/16Socket$
SA45-PVC-6-106 ON 106.625 + 1/1610.75 + 1/16Socket$
SA45-PVC-6-126 ON 126.625 + 1/1612.75 + 1/16Socket$
SA45-PVC-6-146 ON 146.625 + 1/1614 + 1/16Socket$
SA45-PVC-6-166 ON 166.625 + 1/1616 + 1/16Socket$
SA45-PVC-6-186 ON 186.625 + 1/1618 + 1/16Socket$
SA45-PVC-6-206 ON 206.625 + 1/1620 + 1/16Socket$
SA45-PVC-6-246 ON 246.625 + 1/1624 + 1/16Socket$
SA45-PVC-7-77 ON 77.375 + 1/167.375 + 1/16Socket$
SA45-PVC-7-87 ON 87.375 + 1/168.625 + 1/16Socket$
SA45-PVC-7-97 ON 97.375 + 1/169.375 + 1/16Socket$
SA45-PVC-7-107 ON 107.375 + 1/1610.75 + 1/16Socket$
SA45-PVC-7-127 ON 127.375 + 1/1612.75 + 1/16Socket$
SA45-PVC-7-147 ON 147.375 + 1/1614 + 1/16Socket$
SA45-PVC-7-167 ON 167.375 + 1/1616 + 1/16Socket$
SA45-PVC-7-187 ON 187.375 + 1/1618 + 1/16Socket$
SA45-PVC-7-207 ON 207.375 + 1/1620 + 1/16Socket$
SA45-PVC-7-247 ON 247.375 + 1/1624 + 1/16Socket$
SA45-PVC8-88 ON 88.625 + 1/168.625 + 1/16Socket$
SA45-PVC-8-98 ON 98.625 + 1/169.375 + 1/16Socket$
SA45-PVC-8-108 ON 108.625 + 1/1610.75 + 1/16Socket$
SA45-PVC-8-128 ON 128.625 + 1/1612.75 + 1/16Socket$
SA45-PVC-8-148 ON 148.625 + 1/1614 + 1/16Socket$
SA45-PVC-8-168 ON 168.625 + 1/1616 + 1/16Socket$
SA45-PVC-8-188 ON 188.625 + 1/1618 + 1/16Socket$
SA45-PVC-8-208 ON 208.625 + 1/1620 + 1/16Socket$
SA45-PVC-8-248 ON 248.625 + 1/1624 + 1/16Socket$
SA45-PVC-9-99 ON 99.375 + 1/169.375 + 1/16Socket$
SA45-PVC-9-109 ON 109.375 + 1/1610.75 + 1/16Socket$
SA45-PVC-9-129 ON 129.375 + 1/1612.75 + 1/16Socket$
SA45-PVC-9-149 ON 149.375 + 1/1614 + 1/16Socket$
SA45-PVC-9-169 ON 169.375 + 1/1616 + 1/16Socket$
SA45-PVC-9-189 ON 189.375 + 1/1618 + 1/16Socket$
SA45-PVC-9-209 ON 209.375 + 1/1620 + 1/16Socket$
SA45-PVC-9-249 ON 249.375 + 1/1624 + 1/16Socket$
SA45-PVC-10-1010 ON 1010.75 + 1/1610.75 + 1/16Socket$
SA45-PVC-10-1210 ON 1210.75 + 1/1612.75 + 1/16Socket$
SA45-PVC-10-1410 ON 1410.75 + 1/1614 + 1/16Socket$
SA45-PVC-10-1610 ON 1610.75 + 1/1616 + 1/16Socket$
SA45-PVC-10-1810 ON 1810.75 + 1/1618 + 1/16Socket$
SA45-PVC-10-2010 ON 2010.75 + 1/1620 + 1/16Socket$
SA45-PVC-10-2410 ON 2410.75 + 1/1624 + 1/16Socket$
SA45-PVC-12-1212 ON 1212.75 + 1/1612.75 + 1/16Socket$
SA45-PVC-12-1412 ON 1412.75 + 1/1614 + 1/16Socket$
SA45-PVC-12-1612 ON 1612.75 + 1/1616 + 1/16Socket$
SA45-PVC-12-1812 ON 1812.75 + 1/1618 + 1/16Socket$
SA45-PVC-12-2012 ON 2012.75 + 1/1620 + 1/16Socket$
SA45-PVC-12-2412 ON 2412.75 + 1/1624 + 1/16Socket$
SA45-PVC-14-1414 ON 1414 + 1/1614 + 1/16Socket$
SA45-PVC-14-1614 ON 1614 + 1/1616 + 1/16Socket$
SA45-PVC-14-1814 ON 1814 + 1/1618 + 1/16Socket$
SA45-PVC-14-2014 ON 2014 + 1/1620 + 1/16Socket$
SA45-PVC-14-2414 ON 2414 + 1/1624 + 1/16Socket$
SA45-PVC-16-1616 ON 1616 + 1/1616 + 1/16Socket$
SA45-PVC-16-1816 ON 1816 + 1/1618 + 1/16Socket$
SA45-PVC-16-2016 ON 2016 + 1/1620 + 1/16Socket$
SA45-PVC-16-2416 ON 2416 + 1/1624 + 1/16Socket$
SA45-PVC-18-1818 ON 1818 + 1/1618 + 1/16Socket$
SA45-PVC-18-2018 ON 2018 + 1/1620 + 1/16Socket$
SA45-PVC-18-2418 ON 2418 + 1/1624 + 1/16Socket$
SA45-PVC-20-2020 ON 2020 + 1/1620 + 1/16Socket$
SA45-PVC-20-2420 ON 2420 + 1/1624 + 1/16Socket$
SA45-PVC24-2424 ON 2420 + 1/1624 + 1/16Socket$
9-PVC-45°-Elbow-Wye-Saddle-2026-06-16.csv
  • CPVC supports industrial ventilation applications requiring greater temperature resistance and chemical durability.

CPVC 45° WYE SADDLE

Model NumberNominal SizeAB“B” End TypePrice(USD)
SA-45-CPVC-6-66 ON 66.625 + 1/166.625 + 1/16Socket$
SA-45-CPVC-6-76 ON 77.375 + 1/166.625 + 1/16Socket$
SA-45-CPVC-6-86 ON 88.625 + 1/166.625 + 1/16Socket$
SA-45-CPVC-6-96 ON 99.375 + 1/166.625 + 1/16Socket$
SA-45-CPVC-6-106 ON 1010.75 + 1/166.625 + 1/16Socket$
SA-45-CPVC-6-126 ON 1212.75 + 1/166.625 + 1/16Socket$
SA-45-CPVC-6-146 ON 1414 + 1/166.625 + 1/16Socket$
SA-45-CPVC-6-166 ON 1616 + 1/166.625 + 1/16Socket$
SA-45-CPVC-6-186 ON 1818 + 1/166.625 + 1/16Socket$
SA-45-CPVC-6-206 ON 2020 + 1/166.625 + 1/16Socket$
SA-45-CPVC6-246 ON 2424 + 1/166.625 + 1/16Socket$
SA45-7-77 ON 77.375 + 1/167.375 + 1/16Socket$
SA45-7-87 ON 88.625 + 1/167.375 + 1/16Socket$
SA45-7-97 ON 99.375 + 1/167.375 + 1/16Socket$
SA45-7-107 ON 1010.75 + 1/167.375 + 1/16Socket$
SA45-7-127 ON 1212.75 + 1/167.375 + 1/16Socket$
SA45-7-14 S7 ON 1414 + 1/167.375 + 1/16Socket$
A45-7-167 ON 1616 + 1/167.375 + 1/16Socket$
SA45-7-187 ON 1818 + 1/167.375 + 1/16Socket$
SA45-7-207 ON 2020 + 1/167.375 + 1/16Socket$
SA45-7-247 ON 2424 + 1/167.375 + 1/16Socket$
SA45-CPVC-8-88 ON 88.625 + 1/168.625 + 1/16Socket$
SA45-CPVC-8-98 ON 99.375 + 1/168.625 + 1/16Socket$
SA45-CPVC-8-108 ON 1010.75 + 1/168.625 + 1/16Socket$
SA45-CPVC-8-128 ON 1212.75 + 1/168.625 + 1/16Socket$
SA45-CPVC-8-148 ON 1414 + 1/168.625 + 1/16Socket$
SA45-CPVC-8-168 ON 1616 + 1/168.625 + 1/16Socket$
SA45-CPVC8-188 ON 1818 + 1/168.625 + 1/16Socket$
SA45-CPVC8-208 ON 2020 + 1/168.625 + 1/16Socket$
SA45-CPVC-8-248 ON 2424 + 1/168.625 + 1/16Socket$
SA45-CPVC-9-99 ON 99.375 + 1/169.375 + 1/16Socket$
SA45-CPVC-9-109 ON 1010.75 + 1/169.375 + 1/16Socket$
SA45-CPVC-9-129 ON 1212.75 + 1/169.375 + 1/16Socket$
SA45-CPVC-9-149 ON 1414 + 1/169.375 + 1/16Socket$
SA45-CPVC-9-169 ON 1616 + 1/169.375 + 1/16Socket$
SA45-CPVC-9-189 ON 1818 + 1/169.375 + 1/16Socket$
SA45-CPVC-9-209 ON 2020 + 1/169.375 + 1/16Socket$
SA45-CPVC-9-249 ON 2424 + 1/169.375 + 1/16Socket$
SA45-CPVC-10-1010 ON 1010.75 + 1/1610.75 + 1/16Socket$
SA45-CPVC-10-1210 ON 1212.75 + 1/1610.75 + 1/16Socket$
SA45-CPVC-10-1410 ON 1414 + 1/1610.75 + 1/16Socket$
SA45-CPVC-10-1610 ON 1616 + 1/1610.75 + 1/16Socket$
SA45-CPVC-10-1810 ON 1818 + 1/1610.75 + 1/16Socket$
SA45-CPVC-10-2010 ON 2020 + 1/1610.75 + 1/16Socket$
SA45-CPVC-10-2410 ON 2424 + 1/1610.75 + 1/16Socket$
SA45-CPVC-12-1212 ON 1212.75 + 1/1612.75 + 1/16Socket$
SA45-CPVC-12-1412 ON 1414 + 1/1612.75 + 1/16Socket$
SA45-CPVC-12-1612 ON 1616 + 1/1612.75 + 1/16Socket$
SA45-CPVC-12-1812 ON 1818 + 1/1612.75 + 1/16Socket$
SA45-CPVC-12-2012 ON 2020 + 1/1612.75 + 1/16Socket$
SA45-CPVC-12-2412 ON 2424 + 1/1612.75 + 1/16Socket$
SA45-CPVC-14-1414 ON 1414 + 1/1614 + 1/16Socket$
SA45-CPVC-14-1614 ON 1616 + 1/1614 + 1/16Socket$
SA45-CPVC-14-1814 ON 1818 + 1/1614 + 1/16Socket$
SA45-CPVC-14-2014 ON 2020 + 1/1614 + 1/16Socket$
SA45-CPVC-14-2414 ON 2424 + 1/1614 + 1/16Socket$
SA45-CPVC-16-1616 ON 1616 + 1/1616 + 1/16Socket$
SA45-CPVC-16-1816 ON 1818 + 1/1616 + 1/16Socket$
SA45-CPVC-16-2016 ON 2020 + 1/1616 + 1/16Socket$
SA45-CPVC-16-2416 ON 2424 + 1/1616 + 1/16Socket$
SA45-CPVC-18-1818 ON 1818 + 1/1618 + 1/16Socket$
SA45-CPVC-18-2018 ON 2020 + 1/1618 + 1/16Socket$
SA45-CPVC-18-2418 ON 2424 + 1/1618 + 1/16Socket$
SA45-CPVC-20-2020 ON 2020 + 1/1620 + 1/16Socket$
SA45-CPVC-20-2420 ON 2424 + 1/1620 + 1/16Socket$
SA45-CPVC-24-2424 ON 2424 + 1/1620 + 1/16Socket$
4-CPVC-45°-WYE-SADDLE-2026-06-16.csv

Need a size or configuration not listed?

Request Custom Size Or Configuration
