ELBOWS
45° ELBOWS
Fabricated 45° elbow fittings for changing the direction of airflow in industrial duct systems. Available in PVC and CPVC for superior corrosion resistance and long-term performance.
Fabricated 45° elbow fittings for changing the direction of airflow in industrial duct systems. Available in PVC and CPVC for superior corrosion resistance and long-term performance.
Corrosion Resistant
Chemical Resistant
Lightweight & Strong
Low Maintenance
PVC
Polyvinyl Chloride
CPVC
Chlorinated Polyvinyl Chloride
PVC supports corrosion-resistant industrial ventilation applications with strong chemical durability and low maintenance.
CPVC supports industrial ventilation applications requiring greater temperature resistance and chemical durability.
2-PVC 45° ELBOWS
| Model Number | Nominal Duct Size | Average Duct O.D | Average Wall Thickness | End Type | Price(USD) |
|---|---|---|---|---|---|
| 45-PVC-6-1 | 6 | 6.625 | 0.187 | Socket | $ |
| 45-PVC-7-1 | 7 | 7.375 | 0.187 | Socket | $ |
| 45-PVC-8-1 | 8 | 8.625 | 0.187 | Socket | $ |
| 45-PVC-9-1 | 9 | 9.75 | 0.187 | Socket | $ |
| 45-PVC-10-1 | 10 | 10.75 | 0.187 | Socket | $ |
| 45-PVC-12-1 | 12 | 12.75 | 0.187 | Socket | $ |
| 45-PVC-14-1 | 14 | 14 | 0.187 | Socket | $ |
| 45-PVC-16-1 | 16 | 16 | 0.187 | Socket | $ |
| 45-PVC-18-1 | 18 | 18 | 0.187 | Socket | $ |
| 45-PVC-20-1 | 20 | 20 | 0.219 | Socket | $ |
| 45-PVC-24-1 | 24 | 24 | 0.25 | Socket | $ |
6-1-PVC 45° WYE SADDLE
| Model Number | Nominal Size | A | B | End Type | Price (USD) |
|---|---|---|---|---|---|
| SA45-PVC-6-6 | 6 ON 6 | 6.625 + 1/16 | 6.625 + 1/16 | Socket | $ |
| SA45-PVC-6-7 | 6 ON 7 | 7.375 + 1/16 | 6.625 + 1/16 | Socket | $ |
| SA45-PVC-6-8 | 6 ON 8 | 8.625 + 1/16 | 6.625 + 1/16 | Socket | $ |
| SA45-PVC-6-9 | 6 ON 9 | 9.375 + 1/16 | 6.625 + 1/16 | Socket | $ |
| SA45-PVC-6-10 | 6 ON 10 | 10.75 + 1/16 | 6.625 + 1/16 | Socket | $ |
| SA45-PVC-6-12 | 6 ON 12 | 12.75 + 1/16 | 6.625 + 1/16 | Socket | $ |
| SA45-PVC-6-14 | 6 ON 14 | 14 + 1/16 | 6.625 + 1/16 | Socket | $ |
| SA45-PVC-6-16 | 6 ON 16 | 16 + 1/16 | 6.625 + 1/16 | Socket | $ |
| SA45-PVC-6-18 | 6 ON 18 | 18 + 1/16 | 6.625 + 1/16 | Socket | $ |
| SA45-PVC-6-20 | 6 ON 20 | 20 + 1/16 | 6.625 + 1/16 | Socket | $ |
| SA45-PVC-6-24 | 6 ON 24 | 24 + 1/16 | 6.625 + 1/16 | Socket | $ |
| SA45-PVC-7-7 | 7 ON 7 | 7.375 + 1/16 | 7.375 + 1/16 | Socket | $ |
| SA45-PVC-7-8 | 7 ON 8 | 8.625 + 1/16 | 7.375 + 1/16 | Socket | $ |
| SA45-PVC-7-9 | 7 ON 9 | 9.375 + 1/16 | 7.375 + 1/16 | Socket | $ |
| SA45-PVC-7-10 | 7 ON 10 | 10.75 + 1/16 | 7.375 + 1/16 | Socket | $ |
| SA45-PVC-7-12 | 7 ON 12 | 12.75 + 1/16 | 7.375 + 1/16 | Socket | $ |
| SA45-PVC-7-14 | 7 ON 14 | 14 + 1/16 | 7.375 + 1/16 | Socket | $ |
| SA45-PVC-7-16 | 7 ON 16 | 16 + 1/16 | 7.375 + 1/16 | Socket | $ |
| SA45-PVC-7-18 | 7 ON 18 | 18 + 1/16 | 7.375 + 1/16 | Socket | $ |
| SA45-PVC-7-20 | 7 ON 20 | 20 + 1/16 | 7.375 + 1/16 | Socket | $ |
| SA45-PVC-7-24 | 7 ON 24 | 24 + 1/16 | 7.375 + 1/16 | Socket | $ |
| SA45-PVC8-8 | 8 ON 8 | 8.625 + 1/16 | 8.625 + 1/16 | Socket | $ |
| SA45-PVC-8-9 | 8 ON 9 | 9.375 + 1/16 | 8.625 + 1/16 | Socket | $ |
| SA45-PVC-8-10 | 8 ON 10 | 10.75 + 1/16 | 8.625 + 1/16 | Socket | $ |
| SA45-PVC-8-12 | 8 ON 12 | 12.75 + 1/16 | 8.625 + 1/16 | Socket | $ |
| SA45-PVC-8-14 | 8 ON 14 | 14 + 1/16 | 8.625 + 1/16 | Socket | $ |
| SA45-PVC-8-16 | 8 ON 16 | 16 + 1/16 | 8.625 + 1/16 | Socket | $ |
| SA45-PVC-8-18 | 8 ON 18 | 18 + 1/16 | 8.625 + 1/16 | Socket | $ |
| SA45-PVC-8-20 | 8 ON 20 | 20 + 1/16 | 8.625 + 1/16 | Socket | $ |
| SA45-PVC-8-24 | 8 ON 24 | 24 + 1/16 | 8.625 + 1/16 | Socket | $ |
| SA45-PVC-9-9 | 9 ON 9 | 9.375 + 1/16 | 9.375 + 1/16 | Socket | $ |
| SA45-PVC-9-10 | 9 ON 10 | 10.75 + 1/16 | 9.375 + 1/16 | Socket | $ |
| SA45-PVC-9-12 | 9 ON 12 | 12.75 + 1/16 | 9.375 + 1/16 | Socket | $ |
| SA45-PVC-9-14 | 9 ON 14 | 14 + 1/16 | 9.375 + 1/16 | Socket | $ |
| SA45-PVC-9-16 | 9 ON 16 | 16 + 1/16 | 9.375 + 1/16 | Socket | $ |
| SA45-PVC-9-18 | 9 ON 18 | 18 + 1/16 | 9.375 + 1/16 | Socket | $ |
| SA45-PVC-9-20 | 9 ON 20 | 20 + 1/16 | 9.375 + 1/16 | Socket | $ |
| SA45-PVC-9-24 | 9 ON 24 | 24 + 1/16 | 9.375 + 1/16 | Socket | $ |
| SA45-PVC-10-10 | 10 ON 10 | 10.75 + 1/16 | 10.75 + 1/16 | Socket | $ |
| SA45-PVC-10-12 | 10 ON 12 | 12.75 + 1/16 | 10.75 + 1/16 | Socket | $ |
| SA45-PVC-10-14 | 10 ON 14 | 14 + 1/16 | 10.75 + 1/16 | Socket | $ |
| SA45-PVC-10-16 | 10 ON 16 | 16 + 1/16 | 10.75 + 1/16 | Socket | $ |
| SA45-PVC-10-18 | 10 ON 18 | 18 + 1/16 | 10.75 + 1/16 | Socket | $ |
| SA45-PVC-10-20 | 10 ON 20 | 20 + 1/16 | 10.75 + 1/16 | Socket | $ |
| SA45-PVC-10-24 | 10 ON 24 | 24 + 1/16 | 10.75 + 1/16 | Socket | $ |
| SA45-PVC-12-12 | 12 ON 12 | 12.75 + 1/16 | 12.75 + 1/16 | Socket | $ |
| SA45-PVC-12-14 | 12 ON 14 | 14 + 1/16 | 12.75 + 1/16 | Socket | $ |
| SA45-PVC-12-16 | 12 ON 16 | 16 + 1/16 | 12.75 + 1/16 | Socket | $ |
| SA45-PVC-12-18 | 12 ON 18 | 18 + 1/16 | 12.75 + 1/16 | Socket | $ |
| SA45-PVC-12-20 | 12 ON 20 | 20 + 1/16 | 12.75 + 1/16 | Socket | $ |
| SA45-PVC-12-24 | 12 ON 24 | 24 + 1/16 | 12.75 + 1/16 | Socket | $ |
| SA45-PVC-14-14 | 14 ON 14 | 14 + 1/16 | 14 + 1/16 | Socket | $ |
| SA45-PVC-14-16 | 14 ON 16 | 16 + 1/16 | 14 + 1/16 | Socket | $ |
| SA45-PVC-14-18 | 14 ON 18 | 18 + 1/16 | 14 + 1/16 | Socket | $ |
| SA45-PVC-14-20 | 14 ON 20 | 20 + 1/16 | 14 + 1/16 | Socket | $ |
| SA45-PVC-14-24 | 14 ON 24 | 24 + 1/16 | 14 + 1/16 | Socket | $ |
| SA45-PVC-16-16 | 16 ON 16 | 16 + 1/16 | 16 + 1/16 | Socket | $ |
| SA45-PVC-16-18 | 16 ON 18 | 18 + 1/16 | 16 + 1/16 | Socket | $ |
| SA45-PVC-16-20 | 16 ON 20 | 20 + 1/16 | 16 + 1/16 | Socket | $ |
| SA45-PVC-16-24 | 16 ON 24 | 24 + 1/16 | 16 + 1/16 | Socket | $ |
| SA45-PVC-18-18 | 18 ON 18 | 18 + 1/16 | 18 + 1/16 | Socket | $ |
| SA45-PVC-18-20 | 18 ON 20 | 20 + 1/16 | 18 + 1/16 | Socket | $ |
| SA45-PVC-18-24 | 18 ON 24 | 24 + 1/16 | 18 + 1/16 | Socket | $ |
| SA45-PVC-20-20 | 20 ON 20 | 20 + 1/16 | 20 + 1/16 | Socket | $ |
| SA45-PVC-20-24 | 20 ON 24 | 24 + 1/16 | 20 + 1/16 | Socket | $ |
| SA45-PVC24-24 | 24 ON 24 | 24 + 1/16 | 20 + 1/16 | Socket | $ |
6-2-PVC 45° WYE SADDLE
| Model Number | Nominal Size | A | B | End Type | Price (USD) |
|---|---|---|---|---|---|
| BR45-PVC-6-6 | 6 ON 6 | 6.625 + 1/16 | 6.625 + 1/16 | Socket | $ |
| BR45-PVC-6-7 | 6 ON 7 | 6.625 + 1/16 | 7.375 + 1/16 | Socket | $ |
| BR45-PVC-6-8 | 6 ON 8 | 6.625 + 1/16 | 8.625 + 1/16 | Socket | $ |
| BR45-PVC-6-9 | 6 ON 9 | 6.625 + 1/16 | 9.375 + 1/16 | Socket | $ |
| BR45-PVC-6-10 | 6 ON 10 | 6.625 + 1/16 | 10.75 + 1/16 | Socket | $ |
| BR45-PVC-6-12 | 6 ON 12 | 6.625 + 1/16 | 12.75 + 1/16 | Socket | $ |
| BR45-PVC-6-14 | 6 ON 14 | 6.625 + 1/16 | 14 + 1/16 | Socket | $ |
| BR45-PVC-6-16 | 6 ON 16 | 6.625 + 1/16 | 16 + 1/16 | Socket | $ |
| BR45-PVC-6-18 | 6 ON 18 | 6.625 + 1/16 | 18 + 1/16 | Socket | $ |
| BR45-PVC-6-20 | 6 ON 20 | 6.625 + 1/16 | 20 + 1/16 | Socket | $ |
| BR45-PVC-6-24 | 6 ON 24 | 6.625 + 1/16 | 24 + 1/16 | Socket | $ |
| BR45-PVC-7-7 | 7 ON 7 | 7.375 + 1/16 | 7.375 + 1/16 | Socket | $ |
| BR45-PVC-7-8 | 7 ON 8 | 7.375 + 1/16 | 8.625 + 1/16 | Socket | $ |
| BR45-PVC-7-9 | 7 ON 9 | 7.375 + 1/16 | 9.375 + 1/16 | Socket | $ |
| BR45-PVC-7-10 | 7 ON 10 | 7.375 + 1/16 | 10.75 + 1/16 | Socket | $ |
| BR45-PVC-7-12 | 7 ON 12 | 7.375 + 1/16 | 12.75 + 1/16 | Socket | $ |
| BR45-PVC-7-14 | 7 ON 14 | 7.375 + 1/16 | 14 + 1/16 | Socket | $ |
| BR45-PVC-7-16 | 7 ON 16 | 7.375 + 1/16 | 16 + 1/16 | Socket | $ |
| BR45-PVC-7-18 | 7 ON 18 | 7.375 + 1/16 | 18 + 1/16 | Socket | $ |
| BR45-PVC-7-20 | 7 ON 20 | 7.375 + 1/16 | 20 + 1/16 | Socket | $ |
| BR45-PVC-7-24 | 7 ON 24 | 7.375 + 1/16 | 24 + 1/16 | Socket | $ |
| BR45-PVC-8-8 | 8 ON 8 | 8.625 + 1/16 | 8.625 + 1/16 | Socket | $ |
| BR45-PVC-8-9 | 8 ON 9 | 8.625 + 1/16 | 9.375 + 1/16 | Socket | $ |
| BR45-PVC-8-10 | 8 ON 10 | 8.625 + 1/16 | 10.75 + 1/16 | Socket | $ |
| BR45-PVC-8-12 | 8 ON 12 | 8.625 + 1/16 | 12.75 + 1/16 | Socket | $ |
| BR45-PVC-8-14 | 8 ON 14 | 8.625 + 1/16 | 14 + 1/16 | Socket | $ |
| BR45-PVC-8-16 | 8 ON 16 | 8.625 + 1/16 | 16 + 1/16 | Socket | $ |
| BR45-PVC-8-18 | 8 ON 18 | 8.625 + 1/16 | 18 + 1/16 | Socket | $ |
| BR45-PVC-8-20 | 8 ON 20 | 8.625 + 1/16 | 20 + 1/16 | Socket | $ |
| BR45-PVC-8-24 | 8 ON 24 | 8.625 + 1/16 | 24 + 1/16 | Socket | $ |
| BR45-PVC-9-9 | 9 ON 9 | 9.375 + 1/16 | 9.375 + 1/16 | Socket | $ |
| BR45-PVC-9-10 | 9 ON 10 | 9.375 + 1/16 | 10.75 + 1/16 | Socket | $ |
| BR45-PVC-9-12 | 9 ON 12 | 9.375 + 1/16 | 12.75 + 1/16 | Socket | $ |
| BR45-PVC-9-14 | 9 ON 14 | 9.375 + 1/16 | 14 + 1/16 | Socket | $ |
| BR45-PVC-9-16 | 9 ON 16 | 9.375 + 1/16 | 16 + 1/16 | Socket | $ |
| BR45-PVC-9-18 | 9 ON 18 | 9.375 + 1/16 | 18 + 1/16 | Socket | $ |
| BR45-PVC-9-20 | 9 ON 20 | 9.375 + 1/16 | 20 + 1/16 | Socket | $ |
| BR45-PVC-9-24 | 9 ON 24 | 9.375 + 1/16 | 24 + 1/16 | Socket | $ |
| BR45-PVC-10-10 | 10 ON 10 | 10.75 + 1/16 | 10.75 + 1/16 | Socket | $ |
| BR45-PVC-10-12 | 10 ON 12 | 10.75 + 1/16 | 12.75 + 1/16 | Socket | $ |
| BR45-PVC-10-14 | 10 ON 14 | 10.75 + 1/16 | 14 + 1/16 | Socket | $ |
| BR45-PVC-10-16 | 10 ON 16 | 10.75 + 1/16 | 16 + 1/16 | Socket | $ |
| BR45-PVC-10-18 | 10 ON 18 | 10.75 + 1/16 | 18 + 1/16 | Socket | $ |
| BR45-PVC-10-20 | 10 ON 20 | 10.75 + 1/16 | 20 + 1/16 | Socket | $ |
| BR45-PVC-10-24 | 10 ON 24 | 10.75 + 1/16 | 24 + 1/16 | Socket | $ |
| BR45-PVC-12-12 | 12 ON 12 | 12.75 + 1/16 | 12.75 + 1/16 | Socket | $ |
| BR45-PVC-12-14 | 12 ON 14 | 12.75 + 1/16 | 14 + 1/16 | Socket | $ |
| BR45-PVC-12-16 | 12 ON 16 | 12.75 + 1/16 | 16 + 1/16 | Socket | $ |
| BR45-PVC-12-18 | 12 ON 18 | 12.75 + 1/16 | 18 + 1/16 | Socket | $ |
| BR45-PVC-12-20 | 12 ON 20 | 12.75 + 1/16 | 20 + 1/16 | Socket | $ |
| BR45-PVC-12-24 | 12 ON 24 | 12.75 + 1/16 | 24 + 1/16 | Socket | $ |
| BR45-PVC-14-14 | 14 ON 14 | 14 + 1/16 | 14 + 1/16 | Socket | $ |
| BR45-PVC-14-16 | 14 ON 16 | 14 + 1/16 | 16 + 1/16 | Socket | $ |
| BR45-PVC-14-18 | 14 ON 18 | 14 + 1/16 | 18 + 1/16 | Socket | $ |
| BR45-PVC-14-20 | 14 ON 20 | 14 + 1/16 | 20 + 1/16 | Socket | $ |
| BR45-PVC-14-24 | 14 ON 24 | 14 + 1/16 | 24 + 1/16 | Socket | $ |
| BR45-PVC-16-16 | 16 ON 16 | 16 + 1/16 | 16 + 1/16 | Socket | $ |
| BR45-PVC-16-18 | 16 ON 18 | 16 + 1/16 | 18 + 1/16 | Socket | $ |
| BR45-PVC-16-20 | 16 ON 20 | 16 + 1/16 | 20 + 1/16 | Socket | $ |
| BR45-PVC-16-24 | 16 ON 24 | 16 + 1/16 | 24 + 1/16 | Socket | $ |
| BR45-PVC-18-18 | 18 ON 18 | 18 + 1/16 | 18 + 1/16 | Socket | $ |
| BR45-PVC-18-20 | 18 ON 20 | 18 + 1/16 | 20 + 1/16 | Socket | $ |
| BR45-PVC-18-24 | 18 ON 24 | 18 + 1/16 | 24 + 1/16 | Socket | $ |
| BR45-PVC-20-20 | 20 ON 20 | 20 + 1/16 | 20 + 1/16 | Socket | $ |
| BR45-PVC-20-24 | 20 ON 24 | 20 + 1/16 | 24 + 1/16 | Socket | $ |
| BR45-PVC-24-24 | 24 ON 24 | 20 + 1/16 | 24 + 1/16 | Socket | $ |
| Model Number | Nominal Duct Size | Average Duct O.D | Average Wall Thickness | End Type | Price(USD) |
|---|---|---|---|---|---|
| 45-PVC-6-1 | 6 | 6.625 | 0.187 | Socket | $ |
| 45-PVC-7-1 | 7 | 7.375 | 0.187 | Socket | $ |
| 45-PVC-8-1 | 8 | 8.625 | 0.187 | Socket | $ |
| 45-PVC-9-1 | 9 | 9.75 | 0.187 | Socket | $ |
| 45-PVC-10-1 | 10 | 10.75 | 0.187 | Socket | $ |
| 45-PVC-12-1 | 12 | 12.75 | 0.187 | Socket | $ |
| 45-PVC-14-1 | 14 | 14 | 0.187 | Socket | $ |
| 45-PVC-16-1 | 16 | 16 | 0.187 | Socket | $ |
| 45-PVC-18-1 | 18 | 18 | 0.187 | Socket | $ |
| 45-PVC-20-1 | 20 | 20 | 0.219 | Socket | $ |
| 45-PVC-24-1 | 24 | 24 | 0.25 | Socket | $ |
Need a size or configuration not listed?
- RELATED CATEGORIES
- RELATED PRODUCTS

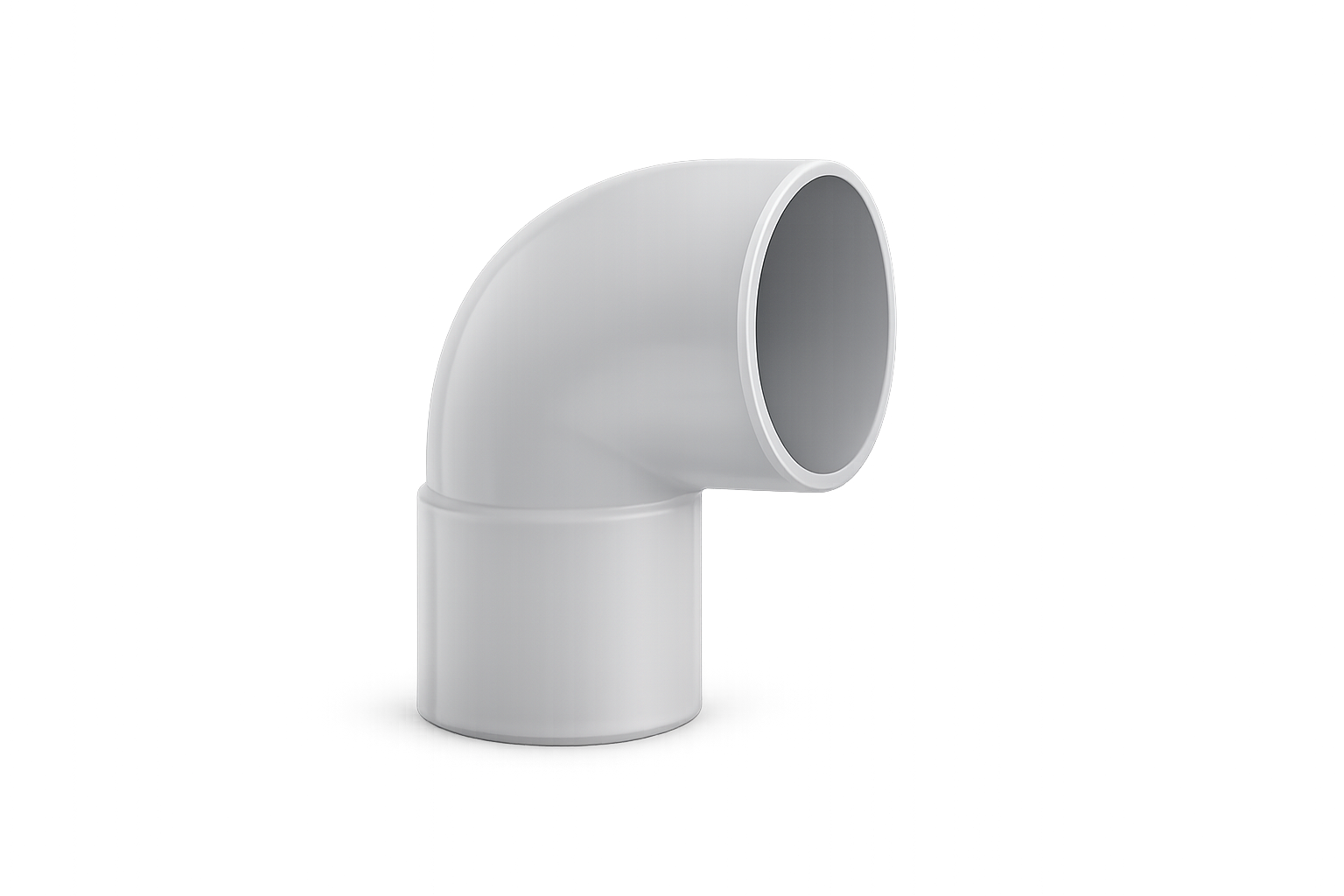

90° Elbow
