How Exhaust Branch Changes Affect Fan Duty and System Balance

Branch Changes Affect the Entire Exhaust Network

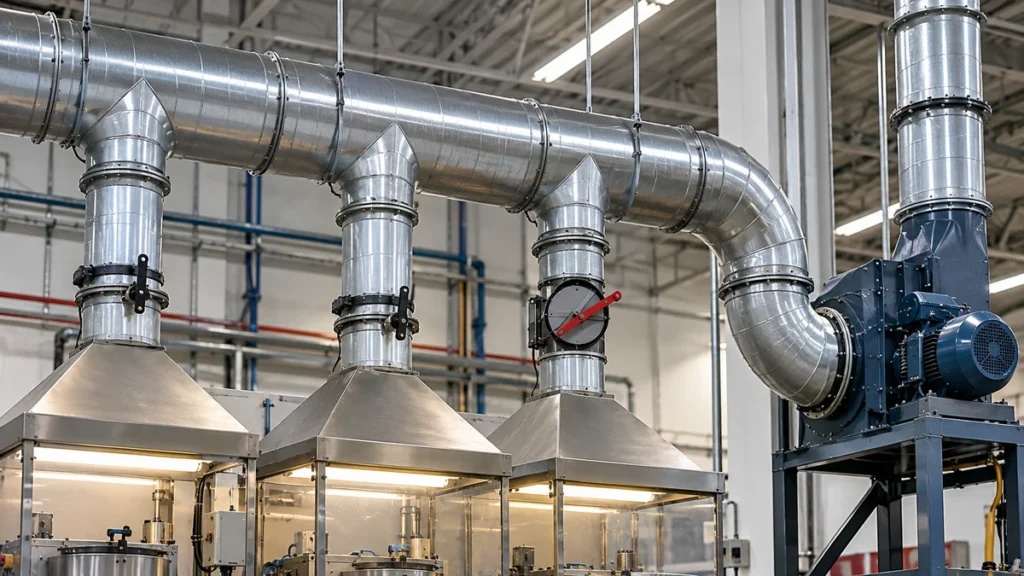

A multi-branch industrial exhaust system is not a collection of independent pipes. Each hood, process enclosure and pickup point connects to common ductwork, treatment equipment and a fan. Airflow through one branch depends partly on the resistance of that path and partly on the pressures established throughout the network. When a branch opens, closes or changes resistance, the conditions available to other branches can change even though their physical geometry remains unchanged.

This issue appears in facilities where process tools cycle, production lines operate in groups or blast gates isolate equipment for maintenance. A system may meet its design values during one commissioning test and deliver different airflow at the same hoods during another operating mode. The question is not simply whether a damper is open or closed. The design team must establish how that change alters shared duct pressures and the fan duty point.

Why a Closed Branch Does Not Simply Transfer Its Airflow Elsewhere

Imagine an exhaust system with several branches connected to a common main. If one branch closes, the fan no longer sees precisely the same network resistance. At a fixed fan speed, total airflow will generally respond to the revised resistance curve, and the fan operating point moves along its performance curve. Flow through remaining branches can change as common duct pressure and fan duty shift. With a typical fixed speed exhaust fan and unchanged remaining branch resistances, closing a parallel branch often increases flow in other open branches, but the actual result depends on the fan curve, network geometry, control response and operating limits. The airflow formerly drawn through the closed branch should not be assumed to divide equally among the others.

The same principle applies when a branch is opened. Adding an available parallel path may change equivalent network resistance and total volume, but the resulting distribution is governed by the complete connected system.

Fan Duty Is an Operating Point, Not a Permanent Number

A fan is selected for a target airflow and pressure under specified gas conditions. Its actual installed duty results from interaction between the fan performance characteristics and the resistance of the operating system. Closing a damper, starting another branch, adding treatment equipment resistance or changing fan speed can alter that relationship. A selected fan does not automatically deliver its catalog design airflow in every branch configuration.

This is particularly relevant when a process exhaust fan serves sources with different operating schedules. At a steady fan speed, a changed system curve may shift both volume and pressure. With variable speed control, the controller may move the fan to another speed in response to its pressure or flow signal. The final condition also depends on measurement locations, control limits, fan stability and the allowable motor load. Engineering evaluation should cover the range of intended operation rather than only the nominal design point.

The Control Strategy Determines How the System Responds

Constant speed and variable speed systems may behave differently after a branch change. A constant speed fan responds according to the available fan curve and new network resistance. A fan with static pressure control may change speed to maintain a selected sensor pressure, but holding pressure at that location does not guarantee the required airflow at every hood. A flow-controlled system may pursue a total volume target while individual branches remain unequally supplied.

Sensor placement and control logic therefore matter as much as the commanded fan speed. A pressure sensor installed in disturbed flow or at a location that does not represent the critical flow paths can produce a control signal that fails to protect the required branch airflow. Designers should document what the controller measures, which operating modes it supports, how branches are enabled and what conditions require alarms or interlocks. A control sequence is not a substitute for a coherent duct resistance design.

Blast Gates and Dampers Change Resistance, Not Just Flow

Blast gates and butterfly dampers can be used to isolate or regulate airflow in a branch when appropriate for the component and process. Their positions introduce different resistances into the network. A partly closed device may alter the branch flow and the pressure distribution available to other paths. The relationship between handle position and airflow is not generally linear, and a reported 50 percent actuator command does not establish 50 percent design volume.

PDI offers PVC and CPVC blast gates and butterfly dampers, but selection and application depend on the contaminant stream, operating conditions and engineering control philosophy. Isolation, balancing and modulation are distinct functions. Designers should confirm which devices are appropriate for the contaminant stream, the operating temperature, pressure conditions and required repeatability. Permanent control positions and alternative operating modes should be documented so the accepted configuration can be reproduced.

An Illustrative Four Branch Operating Scenario

Consider four exhaust pickup points with design values of 1,000, 800, 600 and 400 CFM, respectively. Their simultaneous design total is 2,800 CFM. If the fourth source shuts down, the arithmetic sum of the remaining design requirements is 2,400 CFM. Those figures describe required airflow, not predicted actual system delivery. They do not establish that the fan will reduce to 2,400 CFM, or that the other branches will hold their original values.

The engineer should evaluate the new configuration using the applicable fan curve and branch resistance network. If a fixed speed fan delivers a different total volume after the fourth branch closes, the new volume can be redistributed across the open branches according to the pressure balance. Under properly designed control, the fan may instead reduce speed while maintaining the critical hood requirements. Acceptance requires verifying actual branch performance for the operating state, not merely subtracting the closed branch’s design target.

Shared Mains and Critical Paths Need Special Attention

In a branched network, losses in a common main are shared by downstream sources, while each branch has its own local duct length, fittings and control device losses. A change in total main flow can alter its pressure drop, affecting the static pressure available at several branch junctions. The controlling pressure path may therefore change with the combination of sources in service. Designers should test relevant operating modes before assuming that the same branch always governs fan duty.

An additional branch connection, revised wye geometry or field installed reducer may also alter the distribution. These are not merely fabrication decisions; their local losses interact with available pressure in the network. Where layouts change after the original pressure model was established, the system should be recalculated with the as-built geometry and documented fan condition. The goal is to identify credible deficient-flow and excessive-flow scenarios before they reach the plant floor.

Operating Modes Should Be Explicit in the Design Basis

A useful design basis identifies which sources run continuously, which operate intermittently and which combinations may occur together. It should also specify any minimum exhaust demand for process safety, equipment operation or required containment. Some systems may rely on manually documented branch configurations. Others need sequenced dampers, fan speed changes or automated interlocks. Not every possible theoretical combination requires a separate study, but the operating states that govern performance do.

Start with the maximum expected simultaneous load, then examine credible reduced-load and transitional states. A standby pickup point coming online, a production hood shutting down or a scrubber undergoing a defined operating change may create a different resistance pattern. For each relevant state, record branch availability, target volume, fan control command and any pressure or containment requirements. This makes acceptance testing reproducible and reveals where the system has insufficient control authority.

Variable Speed Control Can Help, but It Is Not an Automatic Cure

Reducing fan speed as demand falls can reduce energy consumption, but actual results depend on fan efficiency, the control strategy and the operating system curve. The familiar fan laws describe relationships among speed, flow, pressure and power when their similarity assumptions apply. They should not be applied mechanically to a changing multi-branch system whose resistance curve is itself moving. Actual savings and airflow distribution require evaluation against the fan and system characteristics for each operating state.

Increasing speed to correct an underperforming branch also requires caution. The extra fan pressure can overdraw other sources, raise noise and affect motor load or fan operating stability. If one branch remains low because of an obstruction, unsuitable fitting arrangement or extreme local resistance, more speed may not provide an acceptable solution. Correct the distribution problem before treating fan speed as the only available control.

Changes in Branch Airflow Can Affect Containment and Transport

The consequences of an airflow change depend on what the system is exhausting. A process hood handling vapors may require a particular source control volume or pressure relationship. A line conveying particles may need sufficient transport velocity to avoid deposition. If opening or closing branches allows a critical section to fall below its required design basis, the process can be compromised even when total fan airflow appears reasonable.

Wet exhaust adds other considerations. Condensation, droplet accumulation and scrubber loading may depend on the actual flow and operating condition. PVC or CPVC chemical resistance does not eliminate these system design issues. Where changing operating states affect gas temperature, condensate or solids loading, the engineering analysis should include the appropriate process assumptions rather than using a single room temperature, clean air performance model without qualification

How to Evaluate a Proposed Branch Modification

Before a new branch is installed or an existing branch is moved, establish the current as-built network and accepted operating conditions. Record the fan model and speed, main and branch sizes, relevant fittings, damper locations, treatment equipment pressure losses, operating modes and branch airflow requirements. Calculate the revised network resistance for the expected configurations and compare the resulting operating points against the available fan performance data.

A modification review should also evaluate source capture requirements, suitable transport velocities where needed, motor operating limits, noise, access, structural supports, thermal movement and corrosion resistance. If the proposed change introduces a new elbow, tee, wye or reducer close to the fan, check whether installed fan system effect becomes relevant. Document both the intended design result and the measurements that will be used to verify performance after the field work.

Commissioning Should Test the Relevant States, Not Just Full Load

Balancing a network at one operating condition establishes only that condition. When different process combinations matter to safety or performance, commissioning should verify those representative modes as defined by the design basis. Measurements should capture the branch airflow and relevant system pressure under known fan speed, control settings and equipment states. The acceptance criteria should be project specific, not copied from a generic tolerance.

This article concerns the airflow and pressure consequences of changing branch operating states. PDI’s separate branch airflow balancing guide addresses the practical sequence of measuring and adjusting individual paths. The two questions are related but distinct: one asks how the system behaves when its configuration changes, while the other explains how to bring an established configuration into balance.

Coordinate Duct Component Changes With the Complete System

Industrial exhaust duct components should not be treated as independent purchases when a branch modification can affect the fan and the remaining pickups. PDI can help coordinate fabricated PVC and CPVC elbows, reducers, wye branches, tee branches and compatible airflow control components with specified duct dimensions and installation constraints. The responsible engineer should supply process conditions, design airflows, control requirements and the evaluated system pressure basis.

The strongest modification package includes revised drawings, documented operating states, equipment and fitting information, and a commissioning plan. That allows fabricators and contractors to work from a defined configuration rather than resolve missing system requirements in the field. It also gives maintenance teams a meaningful baseline when process loads change later.

Need Help for Design for the Network You Will Actually Operate?

An industrial exhaust system must perform across its intended modes of operation. Closing a branch changes more than the flow in that one duct; it can alter the fan operating point, main duct pressures and the airflow available to other sources. Opening new branches or increasing fan speed can create equally important interactions. The resulting behavior depends on the complete resistance network and control strategy.

A sound design therefore defines the relevant operating states, analyzes critical flow paths and confirms the fan and control system can meet each required condition. Branch changes should be evaluated before fabrication and verified during commissioning. PDI can review the fabrication geometry and help coordinate a reducer or custom transition with the surrounding duct system.
