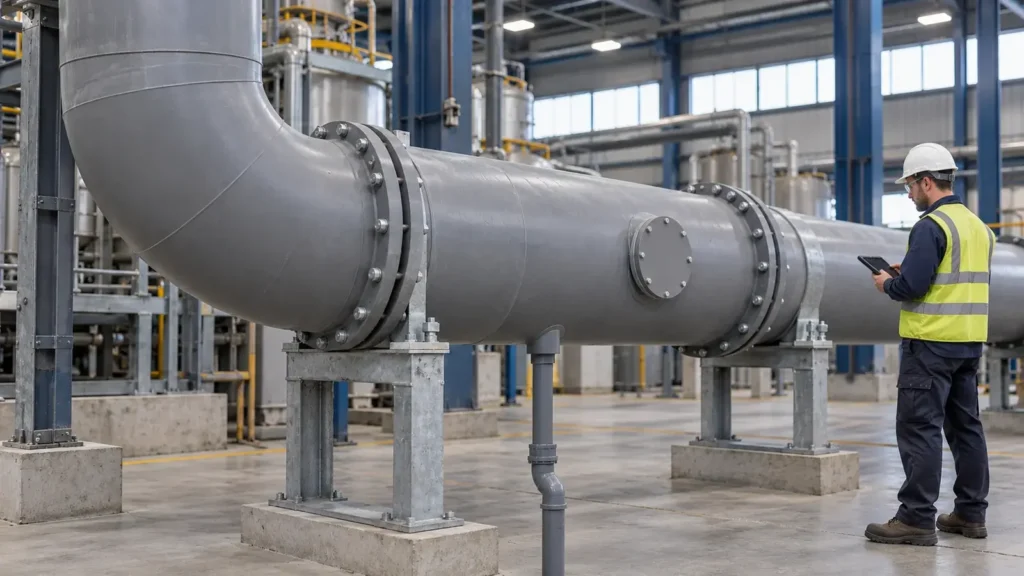

How Condensate Changes Corrosive Exhaust Duct Design

Condensation Changes the Service Condition Inside the Duct

A corrosive exhaust system may be specified from the chemistry and temperature of the moving air stream, but that is not always the condition every internal surface sees.

When vapor condenses, the duct gains a liquid exposure condition. That liquid can wet the bottom of horizontal runs, remain at low points, collect near fittings or equipment connections, and stay in contact with the material after airflow changes or stops. The design therefore has to account for both the moving exhaust and any credible liquid phase that can form inside the system.

ASHRAE notes that ambient temperature around the duct can affect vapor condensation, that horizontal duct can be more susceptible where condensate accumulates, and that moist exhaust applications may require condensate drains. It also notes that intermittent airflow can allow condensate to remain longer because the liquid may not reevaporate quickly.

PDI’s Corrosive Exhaust Duct Failure resource identifies condensate as one local wet service condition. For design, condensate should therefore be treated as a separate condition that needs to be characterized, drained, and inspected.

Start With Dew Point, Not With a Drain

Drainage is important, but the first engineering question is whether condensation can be reduced or avoided.

Condensation can occur when a local internal duct surface falls below the dew point of vapors present in the exhaust stream. The relevant temperatures are therefore not only the process source temperature and the nominal room temperature. The review should consider the exhaust dew point, the expected duct wall temperature, ambient conditions around the duct, startup, shutdown, outdoor exposure, and any colder sections along the route.

ASHRAE recommends estimating the dew point of the effluent and the degree to which condensation may occur when selecting laboratory exhaust duct materials and construction. Its industrial gas cleaning guidance also recommends psychrometric analysis where gases may condense and notes that insulation or startup preheating can be used, where appropriate, to keep duct surfaces above the dew point.

That does not mean every corrosive exhaust run should be insulated. Insulation is one possible design response. The correct choice depends on the process, ambient conditions, material, fire requirements, maintenance access, and whether some condensation is expected by design.

The engineering decision is usually one of three approaches:

• Prevent condensation where practical.
• Allow condensation but provide a controlled drainage path.
• Use both approaches in different parts of the same system.

The important point is to make that decision before fabrication rather than discovering the liquid path after startup.

Horizontal Runs Need a Deliberate Drainage Strategy

Gravity determines where condensate goes after it forms.

ASHRAE guidance for moisture laden duct emphasizes drainage and waterproofing of joints and seams. It also states that risers should drain and that horizontal ducts should pitch in the direction most favorable for moisture control.

For industrial thermoplastic exhaust, that principle should be translated into the actual fabricated layout. The design should identify where liquid is expected to travel, where unavoidable low points exist, and where drains can be installed and maintained.

A horizontal run that appears level on a plan drawing can still develop local low points from structural elevation changes, equipment offsets, field tolerances, support deflection, or fitting geometry. A reducer, elbow, branch, or equipment adapter can also create a location where liquid collects if its orientation is not coordinated with the drainage path.

The specification should therefore show intended drainage rather than relying on installers to infer it from the duct centerline.

Do Not Invent a Universal Slope or Drain Size

There is no single slope, drain diameter, or trap arrangement that can be applied safely to every corrosive exhaust system.

The required drainage detail depends on expected liquid volume, duct pressure or vacuum, process chemistry, drain destination, operating mode, maintenance practice, equipment arrangement, and applicable project requirements.

Drain design on a negative pressure duct should be checked so it does not create an unintended air path or interfere with the intended system pressure condition. A drain serving hazardous or corrosive liquid may need neutralization, containment, or another approved disposal path. Those requirements belong to the process and project design, not to a generic duct rule.

Condensate Chemistry Must Be Verified as a Liquid Exposure

Where condensate is credible, vapor compatibility alone does not fully characterize the liquid exposure condition.

PDI’s PVC Duct Chemical Resistance guide explains that chemical resistance depends on the actual constituents, concentration, temperature, exposure form, and service conditions. Manufacturer data should be used as a screening tool for the specific material being specified.

Condensate can change the exposure from gas or vapor to liquid contact, and some locations may remain wet after airflow changes or stops. The actual liquid composition and concentration should be identified where possible rather than inferred from the bulk exhaust stream. The chemistry may be influenced by which constituents condense, dissolved contaminants, cleaning cycles, carryover, and process changes.

That does not mean condensate is automatically more concentrated or more aggressive than the vapor. It means the liquid exposure is different enough in form and contact duration that compatibility should be checked directly.

This distinction is especially important at drains, low points, seams, joints, gaskets, flexible connections, and equipment interfaces because those locations may remain wet longer than the rest of the duct.

Wet Service Changes the Importance of Joints and Seams

A joint that performs acceptably in dry vapor service may see a different challenge when liquid can remain against it.

ASHRAE moisture laden duct guidance emphasizes drainage and waterproofing of joints and seams. For thermoplastic duct, the approved joining method still depends on the duct construction, fitting type, manufacturer guidance, and project specification.

The design review should identify joints that may sit at or near low points and verify that the fabrication and installation method is appropriate for the expected wet exposure. Field joints deserve particular attention because alignment, surface preparation, cure, welding quality, gasket selection, and final geometry can all influence whether a local pocket or leak path is created.

The goal is not simply to make the joint airtight. Where condensate is expected, the joint should also fit the intended drainage path and remain compatible with the liquid it may contact.

Condensate Can Add Structural Load

Liquid accumulation is also a weight problem.

The support spacing article treats standard manufacturer tables as product data for defined air filled duct. That assumption matters when a run can accumulate liquid. A duct section carrying pooled condensate is no longer in the same loading condition as an empty air filled span.

The design should therefore consider credible liquid accumulation at low points, drains, fittings, and sections where drainage could be interrupted. Concentrated liquid weight may justify local support or a different support arrangement even when the normal support spacing is otherwise acceptable.

This is another reason drainage and support design should be coordinated. A drain location that intentionally receives liquid should not be treated as an ordinary section of straight duct without checking the local load path.

Intermittent Operation Can Increase Wet Contact Time

An exhaust system that runs continuously and one that cycles on and off can create different condensate behavior.

ASHRAE notes that when exhaust flow is intermittent, condensate may remain for longer periods because it may not reevaporate into the airstream. Its laboratory guidance also notes that a time delay may sometimes be used to continue airflow long enough to help dry the duct interior before shutdown.

That is an operating strategy, not a universal requirement. Some processes cannot or should not use extended airflow, and some systems will remain wet regardless.

The engineering value of the observation is that operating mode belongs in the condensate review. The design basis should identify whether the system runs continuously, cycles with equipment, shuts down overnight, or operates only during specific process steps.

A duct that spends long periods wet and stagnant may need a different inspection and drainage strategy from one that remains warm and continuously ventilated.

Post Scrubber Duct Deserves Special Attention

Wet scrubbers place the downstream exhaust in a moisture laden service condition and can create condensate downstream.

Downstream duct and stack sections may therefore see a service condition that is different from the upstream dry or partially wet exhaust. ASHRAE guidance for industrial air pollution control states that stacks on scrubber exhaust should be arranged to drain condensate rather than allow it to accumulate and return toward the fan.

For a PVC or CPVC system, the post scrubber layout should therefore be reviewed for drainage direction, low points, fan connection, stack base condition, inspection access, and liquid compatibility.

The purpose is not simply to add a drain somewhere downstream. The downstream path should be arranged so liquid does not accumulate or return toward the fan where that condition is credible.

Reducers, Branches, and Dampers Can Interrupt the Drainage Path

Airflow fittings are also drainage geometry.

A reducer can change the bottom elevation of a duct depending on how it is fabricated and oriented. A branch can create a pocket if the connection geometry leaves a local low point. A damper or blast gate can introduce component bodies, flanges, or connection geometry that create local retention points.

These components should therefore be reviewed in profile, not only in plan.

Where condensate is credible, the fabrication drawing should make clear how liquid moves through or around the fitting. If a component cannot drain in the intended orientation, the design may need a different fitting arrangement, a drain provision, or a change in elevation.

The same principle applies to transitions at fans, scrubbers, hoods, stacks, and process equipment. The airflow path and the liquid path have to work together.

Inspection Access Should Follow the Wet Locations

Condensate management is not complete when the drain is shown on a drawing.

Wet locations are also the locations most likely to need inspection, cleaning, or maintenance. Drains can plug. Solids can accumulate. Process changes can alter the amount of liquid. A fitting that was intended to drain may settle or shift. A downstream component may show evidence of carryover that was not expected during design.

Inspection access should therefore be planned around known low points, drains, wet fittings, scrubber connections, equipment interfaces, and other locations where liquid behavior needs to be confirmed after startup.

Where the exhaust chemistry is hazardous, access provisions also need to fit the facility safety procedure. Opening or entering a contaminated duct should not be treated as a routine inspection step without an approved isolation and safety process.

Design Condensate Around the Actual Operating Envelope

A useful condensate review should identify:

• Expected exhaust constituents and process products.
• Normal and peak exhaust temperatures.
• Expected dew point or condensation range where it can be estimated.
• Ambient temperatures around indoor and outdoor duct sections.
• Continuous or intermittent operating modes.
• Startup and shutdown conditions.
• Locations where duct wall temperature may fall below the exhaust dew point.
• Horizontal runs, structural elevation changes, and unavoidable low points.
• Drainage direction and approved drain locations.
• Expected liquid volume where known.
• Actual condensate chemistry and temperature where known.
• Material compatibility for PVC, CPVC, seals, gaskets, and connected components.
• Reducers, branches, dampers, and equipment transitions that influence the liquid path.
• Support conditions at wet or liquid collecting locations.
• Inspection, cleaning, and drain maintenance access.
• Approved handling or disposal path for collected liquid.

These inputs are more useful than a generic instruction to slope the duct. They define the wet service condition that fabrication, installation, and maintenance teams actually have to manage.

Condensate Should Be Designed as Part of the Exhaust System

Condensate is not only a maintenance issue and it is not only a material issue.

It changes the internal exposure condition, adds a liquid flow path, can increase local load, makes low point geometry important, and can affect joints, fittings, equipment connections, and inspection access. In corrosive service, those consequences should be addressed while the duct layout is still being designed.

ASHRAE guidance consistently points toward the same engineering sequence: estimate whether condensation can occur, avoid it where practical, select construction that survives the wet environment, and provide drainage where moisture will be present.

For PVC and CPVC exhaust systems, the material may provide strong corrosion resistance when it is compatible with the actual chemistry. The design still needs to give the condensate somewhere controlled to go.
